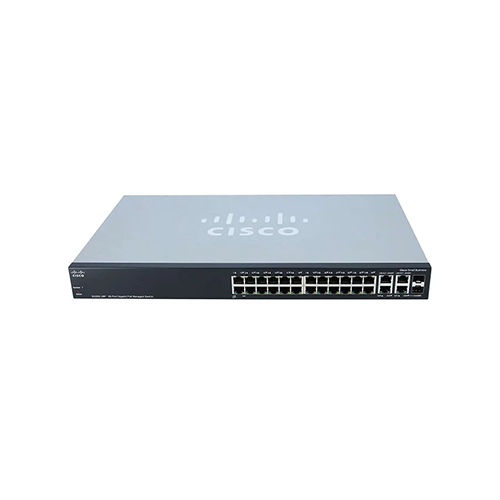

Cisco SG300-28PP-K9-EU 300 Managed Switches Price in Muscat, Oman

Cisco SG300-28PP-K9-EU 300 Managed Switch Specifications

The Cisco SG300-28PP-K9-EU 300 Managed Switch is a versatile networking solution designed to offer efficient connectivity and advanced features for small to medium-sized businesses. With its comprehensive capabilities and user-friendly management interface, this switch is designed to enhance network performance, security, and ease of use. Here are the specifications for the Cisco SG300-28PP-K9-EU:

Physical Specifications:

• Dimensions (W x H x D): 44.0 cm x 4.45 cm x 25.7 cm (17.3 in. x 1.75 in. x 10.1 in.)
• Weight: 4.81 kg (10.6 lb)
• Rack Mountable: Yes, includes rack-mount brackets

Performance:

• Switching Capacity: Up to 56 Gbps
• Forwarding Rate: 41.67 Mpps (64-byte packet size)
• RAM: 128 MB
• Flash Memory: 16 MB

Ports:

• Total Ports: 28
  • 24 x Gigabit Ethernet (10/100/1000) PoE+ ports
  • 2 x Combo Gigabit Ethernet ports (RJ45 + SFP)
  • 2 x SFP (mini-GBIC) ports

Power over Ethernet (PoE) Features:

• PoE Budget: Up to 180W (30W per port)
• PoE+ Standard: IEEE 802.3at

Layer 2 Features:

• VLANs: Support for up to 4096 VLANs
• Spanning Tree Protocol (STP): IEEE 802.1D (Classic STP), IEEE 802.1w (Rapid STP), IEEE 802.1s (Multiple STP)
• Link Aggregation: Support for static and dynamic link aggregation, up to 8 groups, up to 8 ports per group
• Jumbo Frame Support: Up to 9216 bytes

Layer 3 Features:

• IP Routing: Static routing, up to 512 routes

Security Features:

• Access Control Lists (ACLs): Support for IPv4 and IPv6 ACLs
• Port Security: Secure the switch ports by associating them with specific MAC addresses
• DHCP Snooping: Prevent unauthorized DHCP server offering
• Dynamic ARP Inspection: Prevent ARP spoofing attacks

Management:

• Web-based GUI: User-friendly graphical interface for configuration and management
• CLI (Command Line Interface): Text-based configuration for advanced users
• SNMP (Simple Network Management Protocol): Monitoring and management of network devices
• RMON (Remote Monitoring): Enhanced network monitoring and troubleshooting
• Syslog: Centralized logging for network events
• Port Mirroring: Traffic monitoring for network analysis

Quality of Service (QoS):

• Priority Queues: 4 hardware queues per port
• Class of Service (CoS): IEEE 802.1p-based, DSCP-based
• Rate Limiting: Ingress and egress rate limiting

IPv6 Support:

• IPv6 Routing: Static routing
• IPv6 ACLs: Access control lists for IPv6 traffic

Environmental Specifications:

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Storage Humidity: 10% to 90% (non-condensing)

The Cisco SG300-28PP-K9-EU 300 Managed Switch offers a comprehensive set of features to ensure efficient network connectivity, management, and security. Its PoE capabilities and advanced functions make it a suitable choice for businesses seeking a reliable and high-performance networking solution.
