| Model |

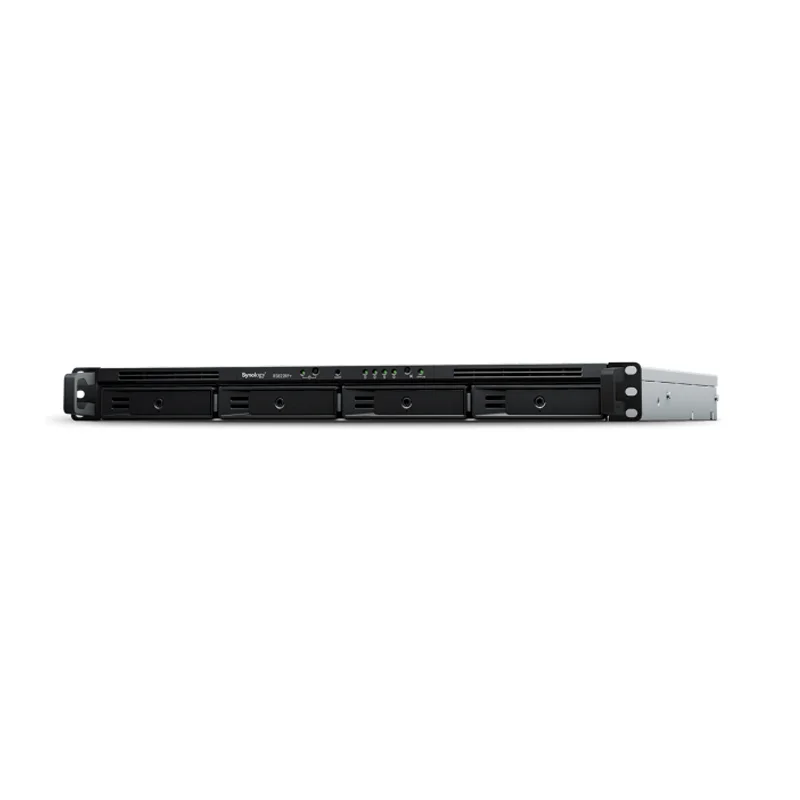

Synology RackStation RS822RP+ |
| Processor |
AMD Ryzen V1500B, 4-core, 2.2 GHz |
| Memory |
8 GB DDR4 (expandable up to 32 GB) |
| Drive Bays |
8 x 3.5″/2.5″ SATA HDD/SSD |
| Hot Swappable Bays |
Yes |
| Maximum Internal Storage |
Up to 128 TB (using 8 x 16 TB drives) |
| Expansion Units |
Supports up to 1 RX1217/RX1217RP Expansion Unit |
| Networking |
4 x 1GbE LAN ports (expandable to 10GbE via PCIe) |
| USB Ports |
2 x USB 3.2 Gen 1 (front), 1 x USB 3.2 Gen 1 (rear) |
| PCIe Expansion Slot |
1 x PCIe 3.0 x8 slot |
| Cooling |
3 x 120 mm Fans (front) |
| Power Supply |
2 x 400W Redundant Power Supply |
| Form Factor |
Rackmount 2U |
| Dimensions (W x D x H) |
483 mm x 466 mm x 88 mm |
| Weight |
Approximately 7.2 kg |
| Operating Temperature |
5°C to 40°C (41°F to 104°F) |
| Operating Humidity |
5% to 95% (non-condensing) |
| Software |
Synology DiskStation Manager (DSM) |
| RAID Support |
RAID 0, 1, 5, 6, 10, 50, 60, Synology Hybrid RAID |
| Backup Solutions |
Synology Hyper Backup, Snapshot Replication |
| Security Features |
AES-NI Hardware Encryption, IP Camera Support |
