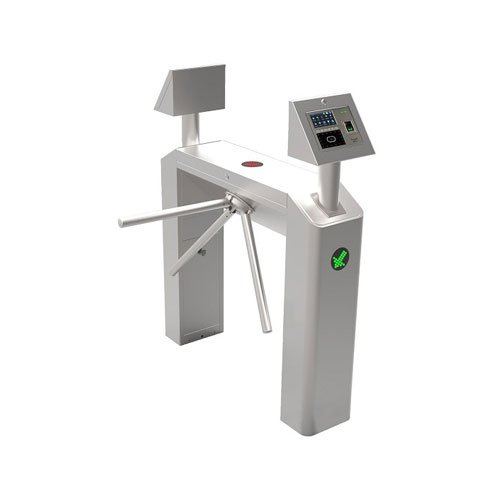

ZKTeco TS2000 Pro Series Turnstile Price in Muscat, Oman
ZKTeco TS2000 Pro Series Turnstile Price in Muscat, Oman
ZKTeco ZKX5030A X-Ray Luggage Inspection Price in Muscat, Oman - Image 1
Click to enlarge

ZKTeco ZKX5030A X-Ray Luggage Inspection Price in Muscat, Oman

SKU: ZKX5030A
  • Pseudo-color image
  • Widely usable for carry-on baggage
  • Excellent, ergonomic industrial design

Add to compare
Add to wishlist
10 People watching this product now!

Description

X-ray System Specifications (Tunnel X-ray Scanner)

Feature Specification
Tunnel Size 507 mm (Width) * 305 mm (Height)
Speed 0.20 m/s
Height of Transmission Belt 710 mm
Maximum Load ≤150 kg (Adequate distribution)
Wire Resolution ≥34 AWG (0.16 mm metal wire)
Space Definition Horizontal Φ1.0 mm \ Vertical Φ2.0 mm
Penetrate Definition ≥32 AWG
Penetration ≥8 mm Steel board
Monitor 17 inch LED
System Function High-density alarm, TIP, Luggage counter, System running timer, X-ray emitting timer, System maintenance, Training
Optional Function Video surveillance system, Bidirectional scan, Electrical weighing system, Energy saving mode, Ultrasonic rat repellent
Film Safety ASA/ISO1600 standard of film safety

X-ray System Technical Specifications

Feature Specification
Tube Voltage 80 kV
Cooling Seal oil cooling / 100%
Single Inspection Dosage Rate ≤1.0 μGy
Radiation Leak Dosage 0.1 μGy/h (5 cm from the surface)

Installation Specifications

Feature Specification
Package Size 1970 mm (Length) × 1020 mm (Width) × 1420 mm (Height)
Weight 400 kg
Power Consumption 0.6 kVA
Noise 53.8 dB(A)

Specification

Overview

Brand

ZKTeco
